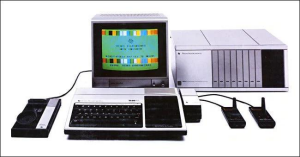

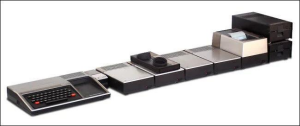

After confirming the two images mentioned above as the visual style, I began arranging thelayout according to modern standards while adjusting the proportions and angles of eachelement. This was done to ensure that the outline and lines would meet modern aesthetic preferences while still maintaining a retro visual style.
Kit Specification:
Case:Aluminum
Layout:Soldered /hotswap
Typing angle :7°
Typing height:18mm
Mount:Bottom
keyboard kit list:
1 Top *1
2 Head zone top *1
3 Accent bar*1
4 Head zone accent*1
5 Keyframe/A*1 (A1,A2,A3,A4 Choose one of four)
6 Keyframe/B*1 (B1,B2,B3 Choose one of three)
7 Bottom*1
8 Weight*2
9 Head zone bottom*1
10 Poron cotton *1
11 Daughter board pcb*1
12 Feet rubber*2
14 hotswap pcb /Flex-cut/1.2mm/escRGB/VIAL/Bluetooth5.0/2.4G
15 Battery 6000mah*1
Left Keyframe (A1,A2,A3,A4)
Right keyframe (B1,B2,B3 )

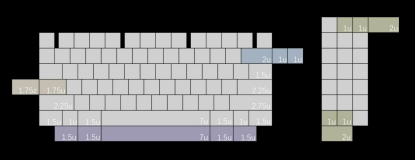

Hotswap Layout:
